Radar system

Company Overview

Intelligent RF Solutions has supported the global defense and intelligence mission for more than 50 years under different entities. Most recently, in June 2013, iRF acquired the IP and assets of the Cobham CES Hunt Valley SIGINT operation. This acquisition ensures a single source in Hunt Valley for microwave receiver products supporting the Signal Intelligence (SIGINT) and Electronic Warfare (EW) missions.

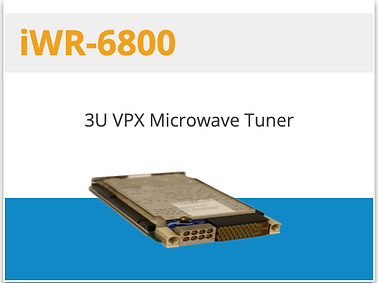

Screenshot 2023-04-21 at 12.05.32 PM.png

  • Supports 0.5 to 18 GHz RF Input Frequency

  • 500 MHz Signal Bandwidth

  • Low Phase Noise <0.5º RMS

  • 3U VPX Form Factor

  • Applications

  • Microwave COMINT/ELINT Frequency Extender

  • Directional Finding

  • Beam Forming

  • SATCOM Tuner

  • Tuning range 0.5 to 26.5 GHz (extendable to 44 GHz)

  • 1 GHz IF with 500 MHz BW and 160 MHz or 140 MHz IF with 100 MHz BW

  • >65 Spur Free Dynamic Range

  • Integrated digitizer provides digital output over VITA-49, 10 GigE interface

  • Supports independent and phase coherent operation

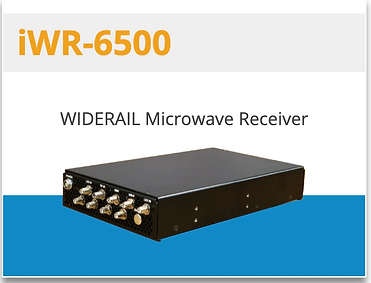

Screenshot 2023-04-21 at 12.06.10 PM.png

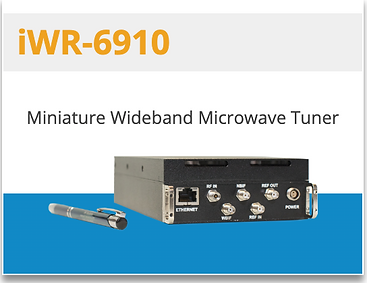

Screenshot 2023-04-21 at 12.06.35 PM.png

  • Tuning Range 0.5 to 18 GHz (26.5 GHz optional)

  • 1GHz IF with 500 MHz BW and 160 MHz or 140 MHz IF with 100 MHz BW

  • >60dB Dynamic Range

  • 28 Watts Total Power

  • Tuning Speed: ITAR Controlled

Other​

  • Low Profile Brick Enclosure

  • Ethernet Control (w/ Web Served GUI)

  • Supports Independent and Phase Coherent Operation

​
